What Is IPTV / Vlan ?
What Is IPTV / Vlan ? IPTV delivers television content through IP networks using protocols like RTP and HTTP Live Streaming, and access typically requires an

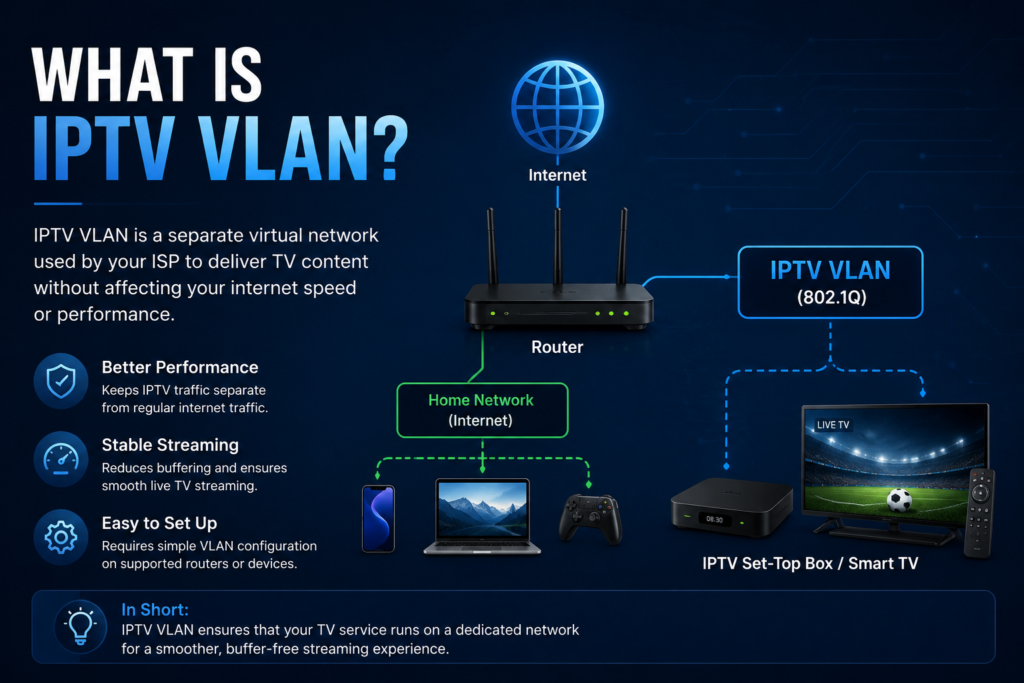

IPTV delivers television content through IP networks using protocols like RTP and HTTP Live Streaming, and access typically requires an active IPTV subscription from a provider. At the same time, VLANs create isolated broadcast domains that segment this IPTV traffic from regular data flows, ensuring better performance and security.
You’ll configure dedicated VLANs for multicast video streams, set-top box management, and VoD services using 802.1Q tagging. IGMP snooping on your IPTV VLANs prevents multicast flooding, and QoS policies with DSCP markings prioritize video packets. These technologies combine to ensure optimal streaming performance across your network infrastructure.
IPTV is a way of receiving television programming through Internet Protocol (IP) networks instead of traditional terrestrial, satellite, or cable formats. To deliver this content, IPTV relies on different streaming protocols such as RTP, RTSP, and HTTP Live Streaming, which manage how video travels across the network.
For smooth playback, you’ll need enough bandwidth—around 8 to 25 Mbps for HD quality, depending on the stream. IPTV can use multicast (one stream shared with many users) or unicast (a separate stream for each user). Multicast is more efficient since it reduces the load on the network.
VLAN is a way to segment your physical network into separate broadcast domains, allowing you to control traffic flow and improve security without needing extra hardware. Different types can be configured, such as port-based, protocol-based, and MAC-based VLANs, to create effective network isolation.
In practice, VLANs are managed by assigning VLAN IDs (1–4094) and setting up trunk ports with 802.1Q tagging. Security is strengthened through inter-VLAN routing restrictions and access control lists (ACLs).
| Aspect | Details |
| Network Foundation | IPTV builds on VLAN segmentation to deliver multimedia over IP. |
| Streaming Quality | Uses multicast protocols, reducing bandwidth use by 60–80%. |
| Packet Delivery | Enables simultaneous transmission to multiple endpoints without duplication. |
| Quality of Service (QoS) | Prioritizes video traffic to maintain stable 1080p/4K streaming. |
| Applications | – Hospitality deployments- Campus networks- ISP triple-play services |
| Management | Centralized monitoring and real-time performance tracking. |
| Scalability | Supports thousands of concurrent users with efficient distribution. |
Through strategic VLAN segmentation, you’ll isolate IPTV traffic from general data flows, implementing IEEE 802.1Q tagging that creates dedicated broadcast domains for multicast streams.
You’re establishing QoS policies at Layer 2, prioritizing video packets while preventing network congestion. Configure separate VLANs for STB management, EPG data, and video delivery—each optimized for specific bandwidth requirements. VLAN scalability ensures you’ll accommodate growing subscriber bases without redesigning network architecture.
By deploying IGMP snooping within VLANs, you’re eliminating unnecessary multicast flooding, directly enhancing IPTV performance. Configure trunk ports with proper VLAN pruning, reducing broadcast storms across distribution switches.
When you’re implementing IPTV with VLAN support, you’ll start by configuring your core switch with dedicated VLAN IDs—typically VLAN 10 for multicast video streams, VLAN 20 for STB management, and VLAN 30 for VoD services. You’ll enable IGMP snooping on VLAN 10 to optimize multicast traffic.
Configure trunk ports between switches using 802.1Q tagging, ensuring proper VLAN configuration across your network infrastructure. Set QoS policies prioritizing video traffic with DSCP markings.
During IPTV setup, you’ll assign access ports to appropriate VLANs based on device types. Test multicast forwarding and verify IGMP join/leave messages process correctly before deployment.
